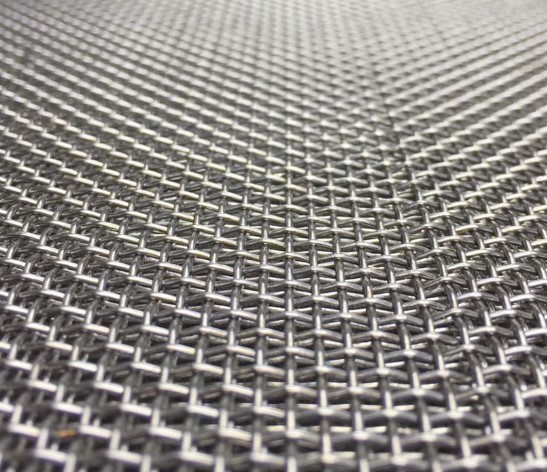

Stainless Steel Woven Wire Mesh with 10Mesh
Подробная информация о продукте
| Материал | Нержавеющая сталь | Размер | 1х30м |
|---|---|---|---|
| номер сетки | 10mesh |
Характер продукции
Stainless Steel Woven Wire Mesh with 10Mesh
High-Fidelity Sieving & Filtration for Critical Applications
10 mesh stainless steel woven wire mesh is a high-precision, heavy-duty product designed for fine particle classification, liquid-solid separation, and protective barrier use across industries where accuracy and reliability are paramount. Fabricated from virgin 304, 316, or 316Ti stainless steel, this mesh undergoes a precision weaving process and post-production annealing to eliminate internal stress, ensuring dimensional stability even under extreme temperature and pressure fluctuations.
10 mesh stainless steel woven wire mesh is a high-precision, heavy-duty product designed for fine particle classification, liquid-solid separation, and protective barrier use across industries where accuracy and reliability are paramount. Fabricated from virgin 304, 316, or 316Ti stainless steel, this mesh undergoes a precision weaving process and post-production annealing to eliminate internal stress, ensuring dimensional stability even under extreme temperature and pressure fluctuations.
Key Specifications
| Mesh Count | 10 openings per linear inch |
|---|---|
| Aperture Size | 2.0mm ± 0.03mm (tight tolerance for consistent screening) |
| Wire Diameter Range | 0.3mm-0.75mm (customizable for flow rate vs. strength balance) |
| Material Options |
304 Grade: Cost-effective, food-grade safe for dry/wet processing environments 316/316Ti Grade: Superior resistance to chloride corrosion, ideal for marine and chemical industries |
| Supply Forms | Custom-cut sheets (max 3m width), continuous rolls (10m-50m length), or pre-fabricated frames |
| Weave Variants | Plain weave (uniform aperture for general use) / Dutch weave (enhanced filtration efficiency for fine particles) |
Core Selling Points
- Tight Aperture Tolerance: Computer-controlled weaving ensures minimal size variation, preventing particle leakage and improving product quality consistency.
- Stress-Free Structure: Annealing treatment eliminates weaving-induced stress, avoiding mesh deformation during installation or long-term use.
- Low Maintenance Cost: Smooth stainless steel surface resists clogging, scaling, and bacterial adhesion; can be cleaned with water or mild detergents without damage.
- Broad Temperature Adaptability: Operates stably in temperatures ranging from -200°C to 600°C, suitable for cryogenic storage and high-temperature processing scenarios.
Target Applications
- Fine grading of ceramic powders, pigments, and pharmaceutical raw materials
- Filtration of wine, beer, and herbal extracts in beverage and pharmaceutical industries
- Protective mesh for chemical reactor vents, oil pipeline filters, and marine engine guards
- Seed sorting and grain cleaning in precision agriculture
- Laboratory particle size analysis and sieve stack assembly
