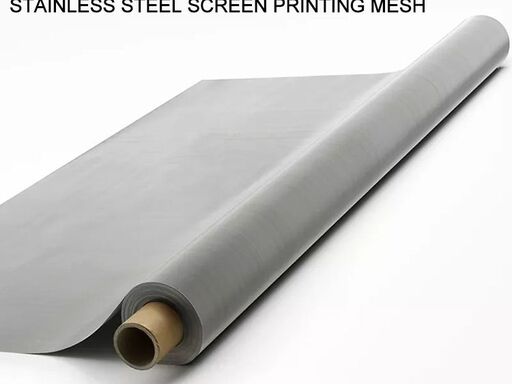

Stainless Steel Printing Screen With Uniform Opening And Good Firmness

1. Product Overview

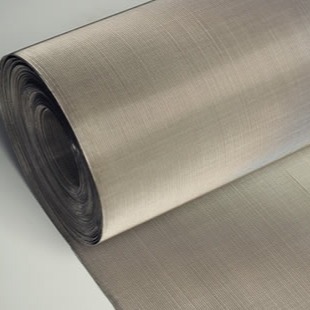

Stainless Steel Printing Screen is precision woven industrial wire mesh specially customized for high-precision screen printing production, manufactured from premium SUS304, SUS304HP, SUS304N and SUS316L stainless steel raw material via advanced plain/twill weaving technology. The mesh surface is flat, knot-free with highly consistent square apertures and precise wire diameter tolerance, available in diversified mesh counts ranging from 70 mesh up to 630 mesh, supplied in full-width rolls or custom-cut sheets to satisfy global printer’s OEM & ODM demands. Different from traditional polyester and nylon printing mesh, stainless steel printing mesh is the preferred consumable for ultra-fine line, micro-circuit and high-volume industrial precision printing worldwide.

2. Core Product Features

1. Ultra-low Elongation & High Tension Stability: Elongation rate below 1% under high stretching force, far superior to over 5% elongation of synthetic fiber mesh; maintains stable tension long-term without deformation or sagging after frame stretching, securing consistent printing precision in mass production.

2. Superior Dimensional Precision: Uniform wire diameter and aperture size with tight tolerance, neat square mesh hole, excellent ink permeability for even ink deposition and sharp printed patterns.

3. Excellent Chemical & Heat Resistance: Resistant to acid, alkali, various printing solvent and cleaning chemicals; withstand working temperature up to 480℃ without melting or deformation, compatible with high-temperature curing printing process.

4. Anti-static Property: Zero static electricity generation during printing, effectively avoids ink aggregation and dot deviation caused by static interference.

5. Outstanding Corrosion & Abrasion Resistance: SUS316L grade performs well in humid and corrosive working environment; strong wear resistance against repeated scraper friction to extend service life.

6. Easy Cleanness & Assembly: Smooth mesh surface for quick residue ink washing, convenient stretching and screen frame installation.

7.

3. Competitive Advantages vs Polyester/Nylon Mesh

• Higher Printing Repeatability: Stable dimension ensures identical printing effect in thousands of continuous batches, reduces reject rate drastically for precision industrial production.

• Long Service Lifespan: 3–8 times longer service cycle than synthetic mesh, lowers frequent screen replacement cost for end-users.

• Perfect for Ultra-fine Printing: Supports printing line width down to micrometer level, ideal for micro-component patterns unavailable to be printed by fiber mesh.

• Wide Ink Compatibility: Works with solvent ink, water-based ink, high-viscosity conductive paste and corrosive industrial printing slurry without mesh damage.

• Cost-saving in Long Run: Less downtime from screen breakdown and replacement, improving overall production efficiency for printing factories.

4. Main Industry Applications

① Electronics Precision Printing (Core Application)

PCB circuit board, FPC flexible circuit, MLCC chip capacitor, chip resistor, touch screen conductive layer, display black matrix, semiconductor component and SMT solder paste printing.

② New Energy Industry

Solar cell silicon wafer conductive silver paste printing, photovoltaic panel fine grid line printing, new energy battery electrode coating printing.

③ Glass & Ceramic Decoration

Automotive glass, architectural tempered glass, ceramic tile glaze, tableware ceramic pattern and digital ceramic decal printing.

④ Hardware & Plastic Industry

Metal part logo printing, precision plastic shell surface graphic printing, electronic housing conductive coating printing.

⑤ Other High-end Fields

Precision textile transfer printing, medical device marking printing, aerospace fine filtration & special industrial slurry filtering besides printing usage.

5. Available Customization Service

• Raw material option: SUS304 for regular printing, SUS316L for corrosive environment, high-hardness special stainless steel for ultra-fine mesh printing.

• Custom mesh count, wire diameter, aperture per customer’s printing drawing requirement.

• Cut-to-size sheet, customized roll width/length, edge trimming and pre-stretched screen frame processing service.

• Free lab test samples available for client performance verification before bulk order.

•

6. Short Closing Marketing Copy

Our factory strictly controls every production procedure from raw material inspection to finished mesh calibration, all products pass tension and dimensional testing before delivery. We have rich export experience serving printing manufacturers from Europe, Southeast Asia, Middle East and South America, reliable quality & flexible lead time to support your bulk procurement. Contact us to get latest quotation and free samples now.

7. Specification
